In autumn, Lenovo is renewing the entry-level workstations of the ThinkStation P350 series, which are available in the three form factors Tiny, SFF and Tower. Above all, the change from Intel Comet Lake to Rocket Lake, with which PCIe Gen 4 comes along, is new. The systems can be extensively equipped with RAM, SSDs and HDDs.
Lenovo does not want the prices of the successors to the ThinkStation P340 Tiny, ThinkStation P340 SFF and ThinkStation P340 Tower until a later date Announce the time as the market launch approaches. The current workstations start at slightly over 600 euros (Tiny) and around 700 euros (SFF, tower), but can also be configured much more expensive. It will work in a similar way with the ThinkStation P350.
Tiny with VESA also on the back of the monitor
The Tiny version measures just 36.5 × 182.9 × 179.0 mm (W × D × H) and can also be stowed almost invisibly on the back of a monitor using a VESA mount. As a Small Form Factor (SFF) the system grows to 92.5 × 309.7 × 339.5 mm and as a tower it is 170.0 × 315.4 × 376.0 mm.
Rocket Lake and Q570 with PCIe Gen 4
The dimensions are accompanied by different specifications, especially in the areas of storage media and interfaces, but even the Tiny still offers a comparatively large number of ports (see table). In the smallest workstation, RAM can be ordered distributed over two SO-DIMM slots with up to 64 GB or installed yourself; two M.2 slots with a maximum of 2 TB each are provided for the SSDs. With the Q570 chipset, Intel's new Rocket Lake platform also includes PCIe Gen 4 for faster data carriers.
-

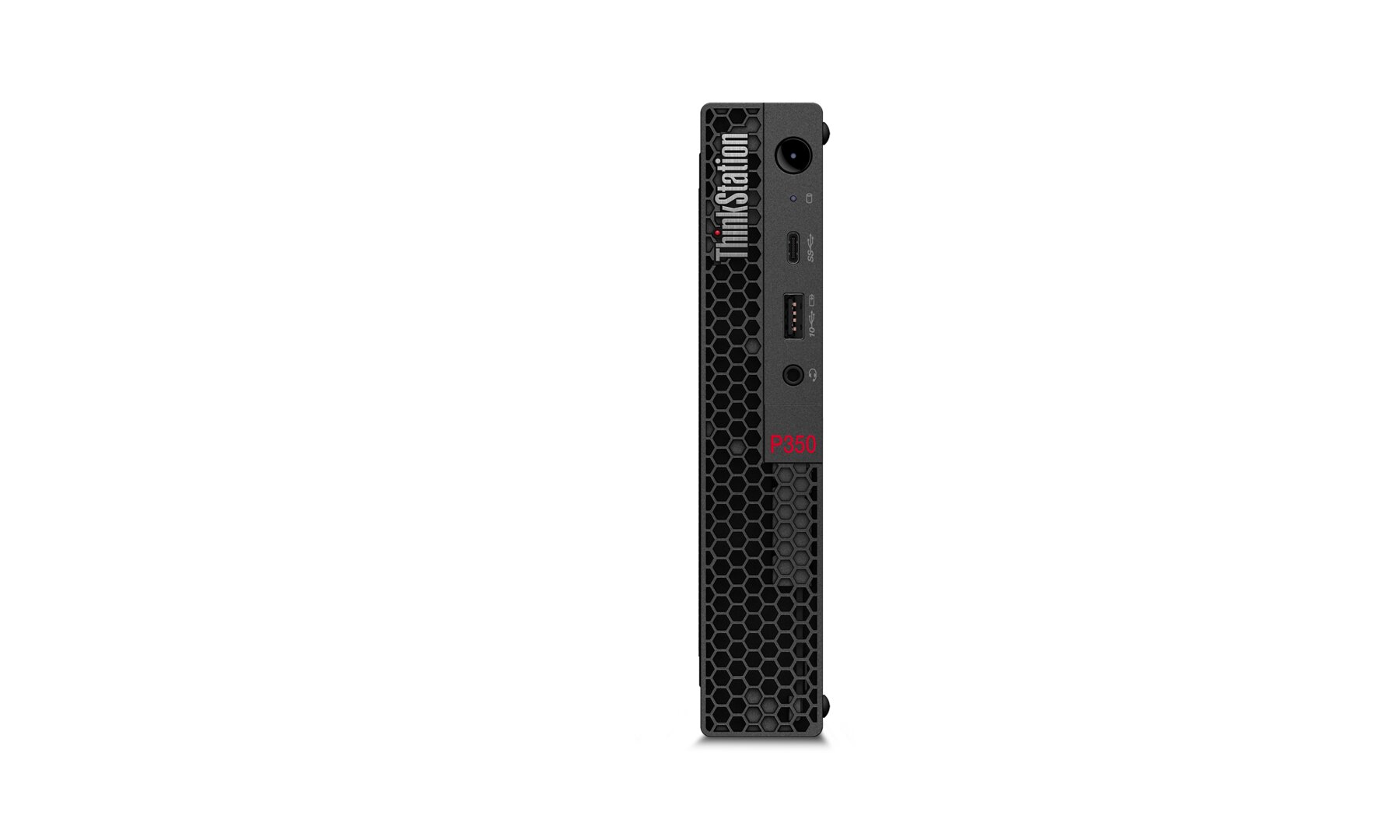

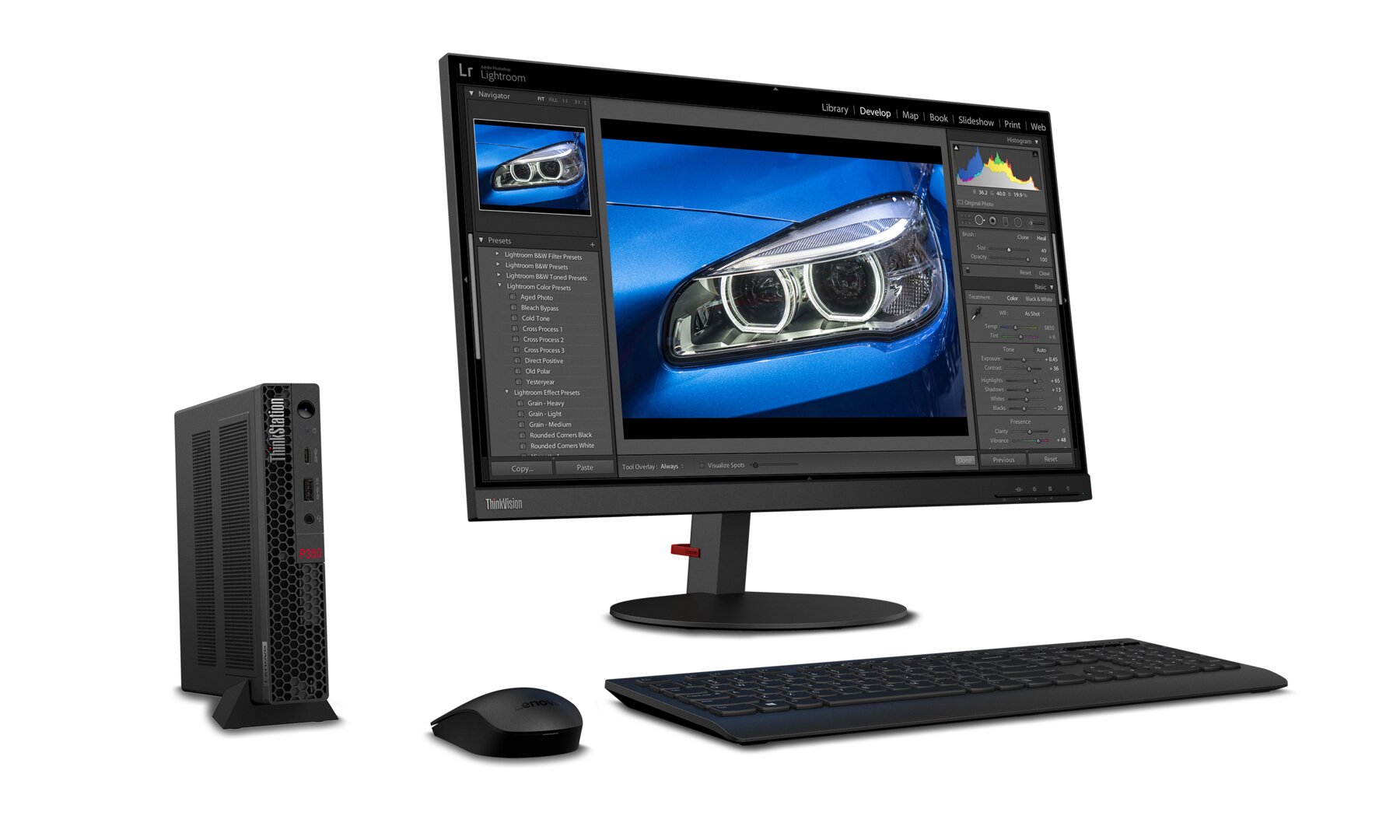

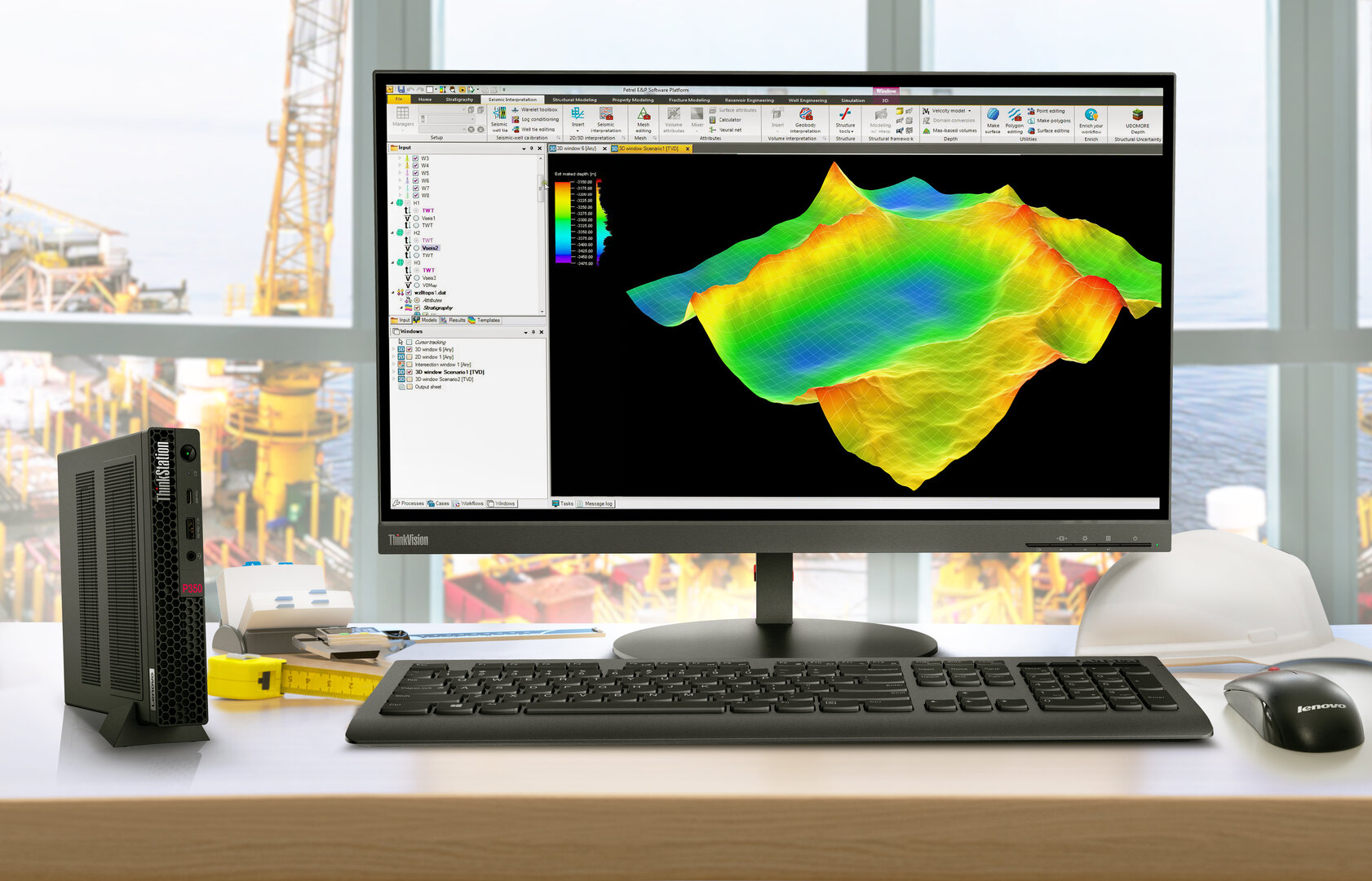

Lenovo ThinkStation P350 Tiny (Image: Lenovo)
Image 1 of 17
LenovoStation Think P350 Tiny < figure>
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
Lenovo ThinkStation P350 Tiny
ThinkStation
” h2 class = “text-width text-h2” id = “section_bis_zu_22tb_ab_werk_im_tower”> Up to 22 TB ex works in the tower
The SFF and Tower versions offer significantly more space for SSDs and HDDs. In addition to three SSDs, the tower can accommodate up to two 3.5 “HDDs and up to four 2.5” HDDs. Lenovo enables configurations with up to 22 TB ex works for the tower. In both systems, RAM can be ordered distributed over four UDIMM slots with up to 128 GB or installed yourself. The two larger workstations use the W580 chipset and accept the Xeon W-1390 and Xeon W-1390P in addition to the Core i9-11900 and Core i9-11900K.
-

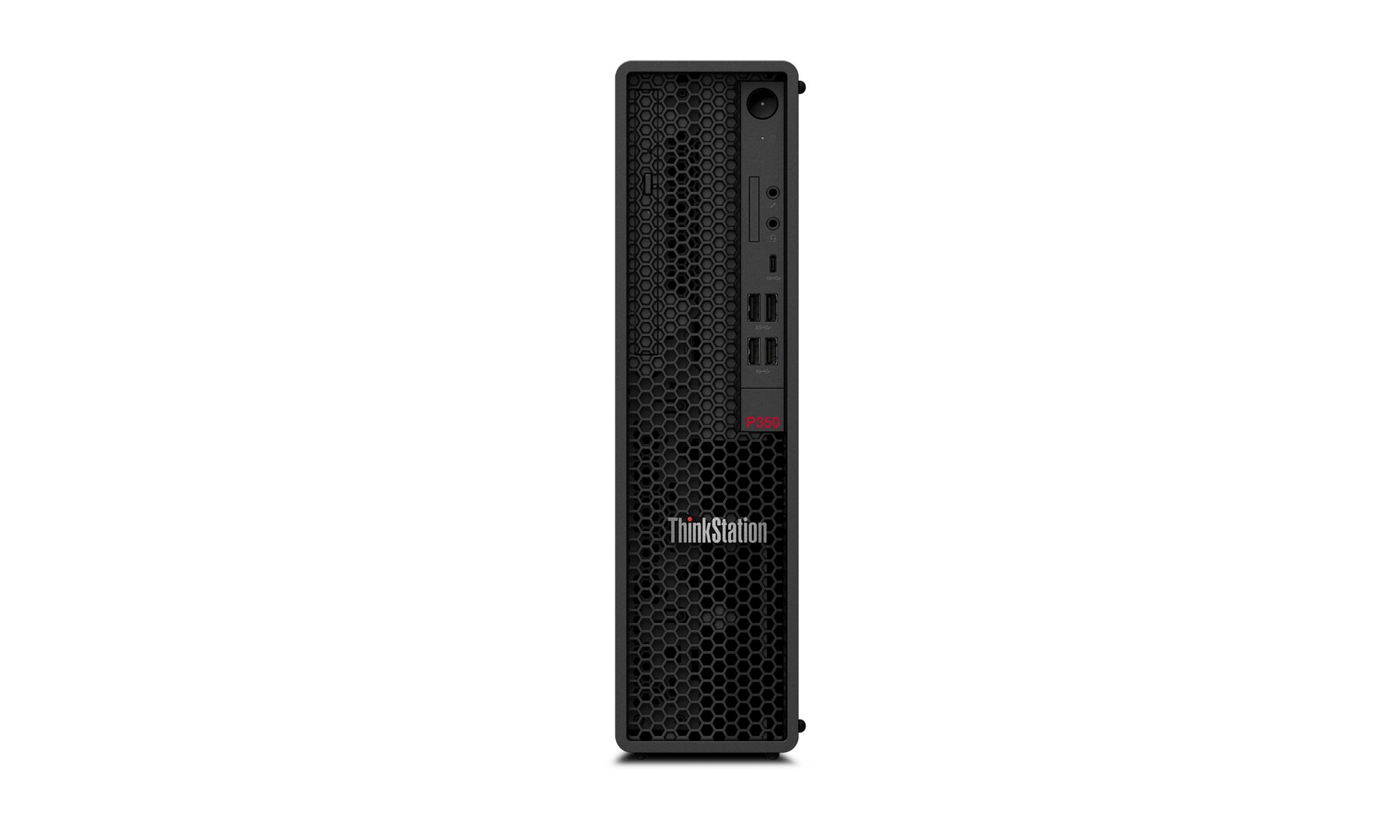

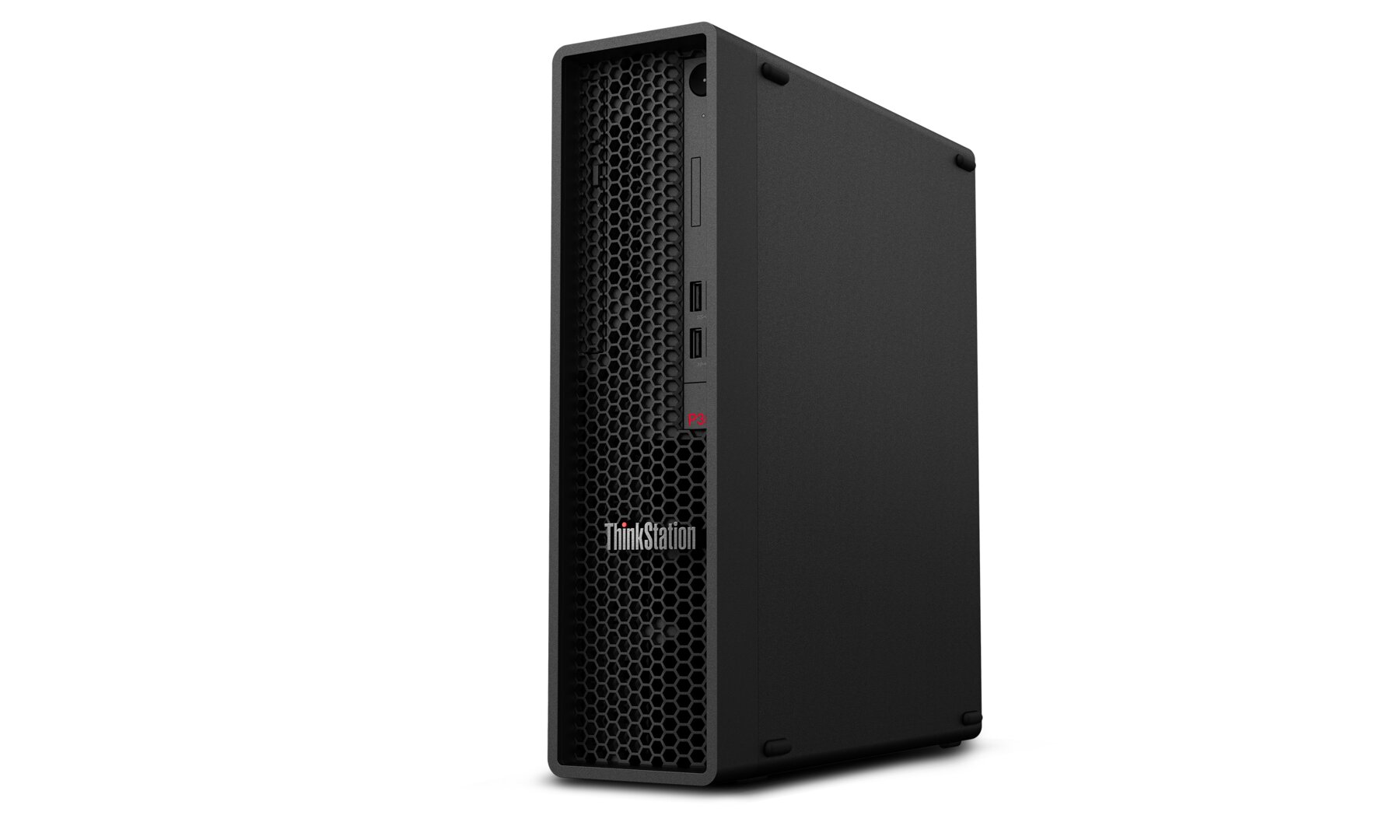

Lenovo ThinkStation P350 SFF (Image: Lenovo)
Image 1 of 12
Lenovo ThinkStation P350 SFF
Lenovo ThinkStation P350 SFF
Lenovo ThinkStation P350 SFF
Lenovo ThinkStation P350 SFF
Lenovo ThinkStation P350 SFF
Lenovo ThinkStation P350 SFF
Lenovo ThinkStation P350 SFF
Lenovo ThinkStation P350 SFF
Lenovo ThinkStation P350 SFF
Lenovo ThinkStation. P350 h2 class = “text-width text-h2” id = “section_nvidia_turing_und_ampere_zug_ein”>Nvidia Turing and Ampere move in
In the area of workstation graphics cards, in addition to the older generation up to the Nvidia Quadro P1000, the Tiny now also has a newer ( up to) Nvidia T600 of the Turing generation made available for selection. The SFF model, on the other hand, can be ordered with a more powerful Nvidia T1000 and a current Nvidia RTX 5000 (ampere) can optionally move in with the tower, which alone should cost around 2,000 euros.
-

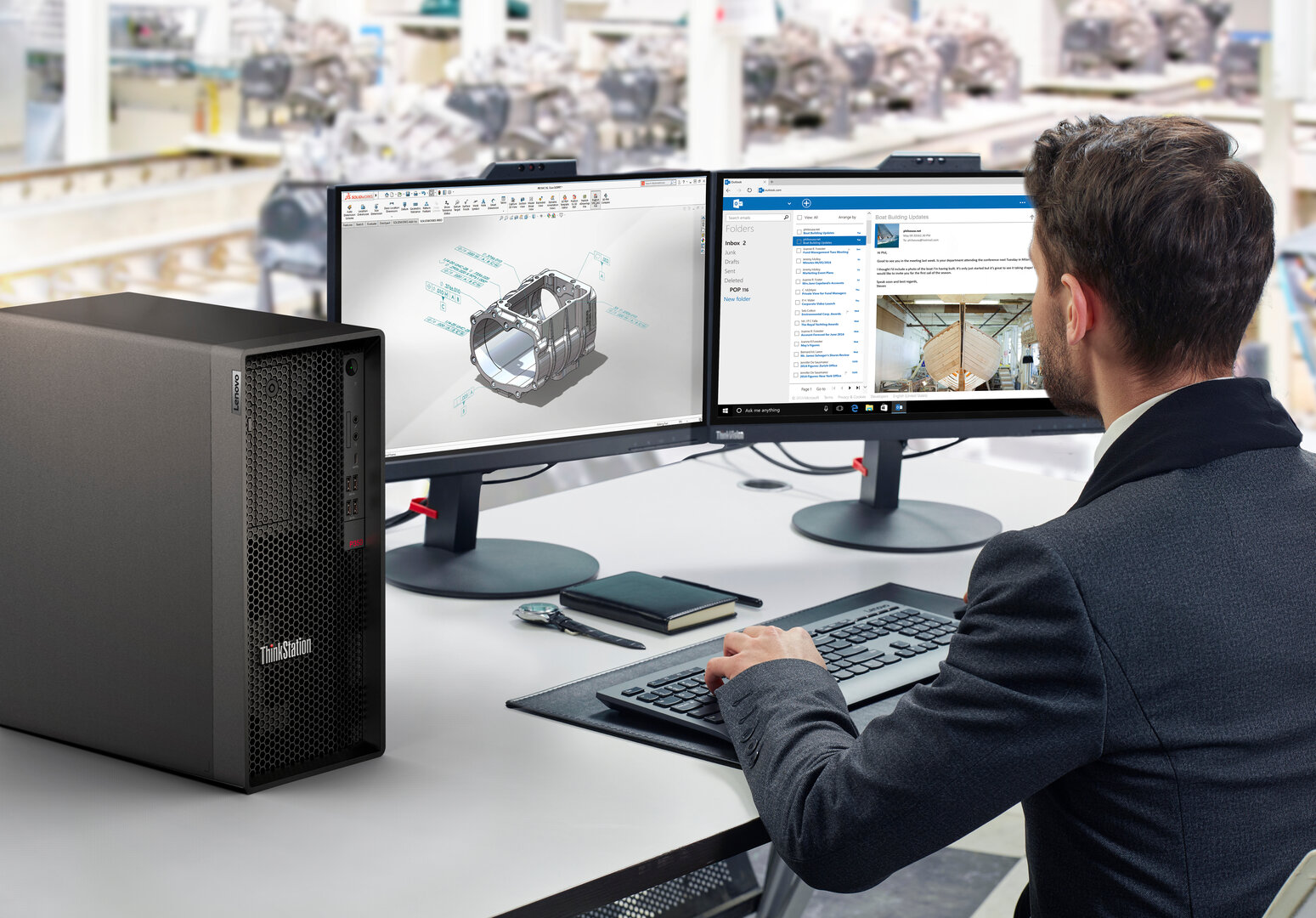

Lenovo ThinkStation P350 Tower (Image: Lenovo)
Image 1 of 13
Lenovo ThinkStation P350 Tower
Lenovo ThinkStation P350 Tower
Lenovo ThinkStation P350 Tower
Tower in the ThinkStation P350 src = “/wp-content/uploads/39db49b3593be967bbed0e0325db5024.jpg” /> Lenovo ThinkStation P350 Tower
Lenovo ThinkStation P350 Tower
Lenovo ThinkStation P350 Tower
Lenovo ThinkStation P350 Tower
Lenovo ThinkStation P350 Tower
Lenovo ThinkStation P350 Tower
Lenovo ThinkStation P350 Tower Software from Windows to Linux
When it comes to software, Windows 10 Home, Windows 10 Pro, Ubuntu Linux, Red Hat Enterprise Linux and for the Xeons also Windows 10 Pro for Workstations to choose from.
up to Intel Xeon W-1390 up to Intel Core i9-11900K
up to Intel Xeon W-1390P chipset Intel Q570 Intel W580 GPU up to Nvidia Quadro P1000
up to Nvidia T600 up to Nvidia T1000 up to Nvidia RTX 5000 RAM up to 64 GB DDR4-3200, 2 SO-DIMM slots up to to 128 GB DDR4-3200, 4 UDIMM slots SSD/HDD up to 4 TB (2 × 2 TB) PCIe Gen 4 up to 6 TB (3 × 2 TB) PCIe Gen 4
up to 6 TB (1 × 6 TB) 3.5 “-SATA
up to 2 TB (2 × 1 TB) 2.5″ -SATA up to 6 TB (3 × 2 TB) PCIe Gen 4
up to 12 TB (2 × 6 TB) 3.5 “-SATA
up to 4 TB (4 × 1 TB) 2.5 & quot; -SATA expansions – 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1, 1 × PCIe 3.0 x4 connections front 1 × USB 3.2 Gen 2 type C, 1 × USB 3.2 Gen 2 type A, 1 × audio combo 2 × USB 3.2 Gen 1 type A, 1 × USB 3.2 Gen 2 type C, 2 × USB 3.2 Gen 2 type A, 1 × audio, 1 × microphone rear 2 × USB 3.2 Gen 1 type A, 2 × USB 3.2 Gen 2 type A, 1 × DisplayPort, 1 × HDMI, 1 × RJ45 Gigabit Ethernet, 1 × Wi-Fi dipole antenna, 4 × Mini-DisplayPort (only with dGPU) 4 × USB 3.2 Gen 1 type A, 1 × audio, 3 × DisplayPort (2 × standard, 1 × optional), 1 × RJ45 Gigabit Ethernet, 2 × serial port (1 × standard, 1 × optional), 1 × Thunderbolt 4 (optional), 1 × HDMI (optional), 2 × PS/2 (optional), 1 × parallel port (optional), 1 × dual type C ports USB 3.1 adapter (optional), 1 × dual type C ports USB 2.0 adapter (optional) others – 1 × 3-in-1 card reader, 1 × slim optical disc drive 1 × 3-in-1 card reader, 1 × slim optical disc drive, 1 × front drive tray Wireless connectivity Intel Wi-Fi 6 AX 201 (optional )
Intel Wi-Fi 9560 (optional)
Foxconn RTL8822CE (optional) Intel Wi-Fi 6 AX 201 power supply 170 watts (89%)
230 watts (89%) 380 watts (92%) 500 watts (92 %)
750 watts (92%) Dimensions 36.5 × 182.9 × 179.0 mm 92.5 × 309.7 × 339.5 mm 170.0 × 315.4 × 376.0 mm Weight from 1.32 kg from 5.01 kg from 9.40 kg Operating system Windows 10 Home
Windows 10 Pro
Ubuntu Linux
Red Hat Enterprise Linux Windows 10 Home
Windows 10 Pro
Windows 10 Pro for Workstations for Ubuntu Linux
Red Hat Enterprise Linux Price to follow later in the year Availability fall 2021
