Tested 15 years ago: Scythe Ninja Cu, the limited copper slug

0
65

The Scythe Ninja Cu (test) was a revised version of the Ninja in full copper casing with a new fan that provided better cooling at a lower sound pressure level. At 60 euros, the version, which was limited to 600 copies in Germany, was more expensive than many of its competitors – and heavier.

Table of contents

  1. Copper as far as the eye could see
  2. Outstanding in silent operation, even with reference ventilation
  3. Conclusion

Copper as far as the eye could see

With dimensions of 110 × 110 × 150 mm (L × W × H), the cooler weighed around 1,120 g. The high weight was due to the change in material – the original made of aluminum weighed 665 g. As with the original, Scythe uses a six-way U layout with 6 mm heat pipes that dissipate the waste heat from the copper base plate to the copper fins. Unlike the original version, the heatpipes were spaced slightly further, distributing the heat more evenly.

Image 1 of 6

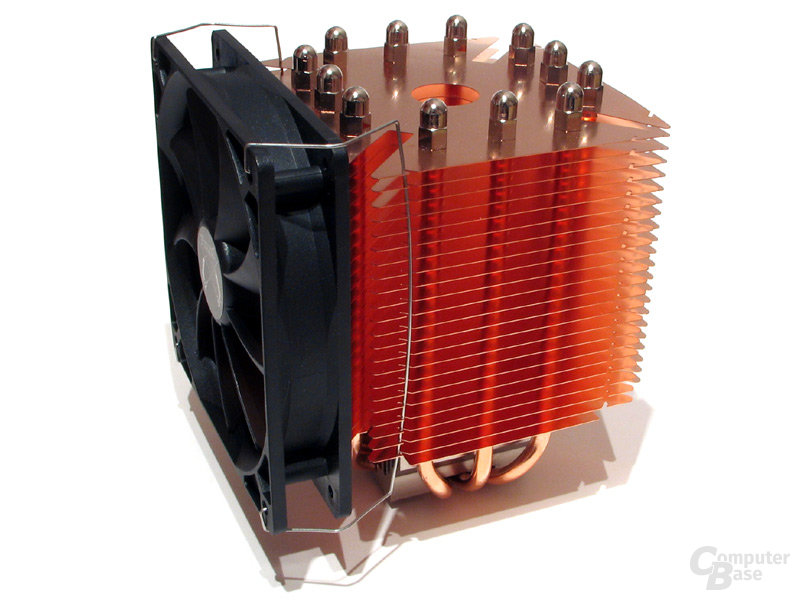

< figure class="thumbs__figure thumbs__figure--has-caption"> Flawless quality
Slightly improved slat progression and higher quality
Comparison: Ninja Hybrid in Rev A and Ninja Cu
Meanwhile Scythe standard: nickel-plated radiator floor
Convenient wire bracket mount for 120mm fan

With its 23 wafer-thin fins and their relatively large spacing of about 4 mm, the Scythe Ninja was optimized for low-speed fans. The included Scythe Slip-Stream fan (120 mm) worked at a maximum of 800 rpm. With this, the manufacturer went back to its roots: silent cooling. Even at full speed, the fan was hardly audible, when throttled it was completely inaudible.

Outstanding in silent mode, even with reference ventilation

To ensure a fair comparison between the coolers, 15 years ago all coolers were tested with three different reference ventilations. The Scythe Ninja Cu was able to stand out particularly in the Super Silent configuration. He achieved slightly better results with the series ventilation than with the reference fan. In both cases, however, it placed itself at the top of the test field, right after the Thermalright IFX-14. In the other two fan configurations, the values ​​were a bit worse compared to other coolers, but it was always enough for a place in the middle. At high speeds, the large distances between the fins thwarted the Ninja Cu – the cooler was developed explicitly for slowly rotating fans.

Super-Silent -configuration [< 31 dB(A)]

Cooler combo
[Fan] Speed
[RPM] Load temp.
Cores* [°C] Sound pressure
[dB(A)] Thermalright IFX-14
[2 x Scythe S-Flex SFF21D (120 mm)] 2 x 750 65.5 30.6 Thermalright IFX -14
[Scythe S-Flex SFF21D (120mm)] 750 69.0 30.4 Scythe Ninja Cu
[120mm Series (Slip Stream)] 750 70, 75 30.4 Scythe Ninja Cu[120mm, Scythe S-Flex SFF21D] 750 72.0 30.4 Thermalright Ultra-120 eXtr.
[120mm, Scythe S-Flex SFF21D] 750 72.25 30.4 Xigmatek HDT-S1283
[120mm, Scythe S-Flex SFF21D] 750 72.5 30.4 Scythe Ninja Rev. A
[120mm, Scythe S-Flex SFF21D] 750 73.0 30.4 Scythe Mugen Heatsink
[120mm, Scythe S-Flex SFF21D] 750 73.5 30.4 Enzotech Ultra-X
[120mm, Scythe S-Flex SFF21D] 750 74.25 30.4 Thermalright Ultra-120
[120 mm, Scythe S-Flex SFF21D] 750 75.75 30.4 Scythe Ninja Cu[120mm Series (Slip Stream)] 440 79.75 30.4 Scythe Andy Samurai
[120mm, Scythe S-Flex SFF21D] 750 80.0 30.4 Scythe Katana 2
[100mm, Stock fan] 830 90.5 30.4

Quiet to medium configuration [< 40 dB(A)]

Cooler combo
[Fan] Speed
[RPM] Load temp.
Cores* [°C] Sound pressure
[dB(A)] Thermalright IFX-14
[120 mm, Papst F2GLL] 1,150 65.5 31.7 Enzotech Ultra-X
[120mm, ADDA Series] 1,100 66.5 35.5 Thermalright Ultra-120 eXtr.
[120mm, Pope F2GLL] 1,150 67.0 31.6 Xigmatek HDT-S1283
[120mm, Pope F2GLL] 1,150 67.25 31.2 ZEROtherm Nirvana NV120
[120mm stock fan] 1,030 67.25 32.0 Scythe Ninja Cu
[120mm, Pope F2GLL] 1,150 67.75 31.5 Scythe-Mugen Heatsink
[120mm Pope F2GLL] 1,150 68.5 31.4 Zalman CNPS 9700 LED
[110mm Stock Fan] 1,250 69.25 33.3 Scythe Ninja Rev. A
[120mm, Pope F2GLL] 1,150 69.5 31.5 Enzotech Ultra-X
[120mm, Pope F2GLL] 1150 69.5 31.6 Thermalright Ultra-120
[120mm, Pope F2GLL] 1150 70.75 31.6 Scythe Andy Samurai
[120mm, Pope F2GLL] 1150 71 .75 31.7 Zalman CNPS 9500 LED
[92mm stock fan] 1,400 75.75 32.9 Scythe Katana 2
[100mm stock fan] 1,550 78.5 34.6

Power Configuration [> 40 dB(A)]

Cooler combo
[Fan] Speed
[RPM] Load temp.
nuclei* [°C] sound pressure
[dB(A)] ZEROtherm Nirvana NV120
[120 mm standard fan] 2,450 61.25 45.7 Thermalright IFX-14
[120 mm, Sharkoon Power] 2,100 62.25 49.4 Zalman CNPS 9700 LED
[110mm stock fan] 2250 62.25 49.9 Thermalright Ultra-120 eXtr.
[120mm, Sharkoon Power] 2100 62.5 49.2 Enzotech Ultra-X
[120 mm, ADDA series] 2,200 62.75 52.3 Xigmatek HDT-S1283
[120 mm, Sharkoon Power] 2,100 63.0 48.8 Scythe Ninja Cu
[120 mm , Sharkoon Power] 2,100 63.25 49.1 Scythe Mugen Heatsink
[120mm, Sharkoon Power] 2100 63.75 49.0 Scythe Ninja Rev. A
[120mm, Sharkoon Power] 2100 66.0 49.1 Enzotech Ultra-X
[120mm, Sharkoon Power] 2100 66.5 49.1 Scythe Andy Samurai
[120mm, Sharkoon Power] 2100 66.25 49.1 Thermalright Ultra-120
[120mm, Sharkoon Power] 2100 66.25 49.2 Zalman CNPS 9500 LED
[92mm series fan] 2,250 69.5 47.1

Conclusion

Overall, the Ninja Cu was a successful cooler. With a price of 60 euros, the limited edition was comparatively expensive. In addition, the dimensions and the high weight of the cooler meant that it could not be easily installed in every case. Especially when mounting on Intel systems, there were some difficulties due to the sheer size of the cooler. With only 600 copies on the German market, the Ninja Cu was a model for enthusiasts.
