XMG Apex 15 Max: AMD Ryzen 7 5800X3D makes its debut in a notebook

0
118

With the XMG Apex 15 Max (E22 generation), Schenker is bringing the particularly efficient gaming specialist Ryzen 7 5800X3D (test) with 3D V-Cache into a notebook for the first time ever and combining the Zen -3 desktop CPU optionally with an Nvidia GeForce RTX 3060 or GeForce RTX 3070 laptop GPU of the Ampere generation.

Ryzen 5 5600X and GeForce RTX 3060 as base

The new XMG Apex 15 Max (E22) already uses a desktop processor in the basic configuration and uses an AMD Ryzen 5 5600X (test) with 6 Zen 3 cores, which comes with 2 × 8 GB DDR4-3200 from Samsung and an Nvidia GeForce RTX 3060 laptop GPU with 6 GB GDDR6 and a TGP of 115 watts.

XMG Apex 15 Max (E22) (Image: XMG)

Basically, the new XMG Apex 15 Max costs 1,380 euros and also offers a 500 GB Samsung 980, which is connected via PCIe 3.0 x4. The 15.6-inch IPS display has a Full HD/1080p resolution and offers 240 Hz.

R7 5800X3D and GeForce RTX 3070 as an upgrade

More exciting than the entire desktop portfolio of the AMD Vermeer generation, which includes the Ryzen 7 5700X (test), Ryzen 9 5900X and the Ryzen 9 5950X is available, but the Ryzen 7 5800X3D, which is being used in a notebook for the first time.

Processor

    < li>AMD Ryzen 5 5600X (Base)

    • 6C/12T, 32MB Cache, 88W PPT
  • AMD Ryzen 7 5700X (+ 90 euros)
    • 8C/16T, 32 MB cache, 88W PPT
  • AMD Ryzen 9 5900X (+ 260 euros)
    • 12C/24T, 64 MB Cache, 88W PPT
  • AMD Ryzen 7 5800X3D (+340 Euro)
    • 8C/16T, 96 MB Cache, 88W PPT
  • AMD Ryzen 9 5950X (+ 430 euros)
    • 16C/32T, 64 MB Cache, 88W PPT
Graphics card

  • Nvidia GeForce RTX 3060 laptop GPU (base)
    • GA106, 3,840 shaders, 6 GB GDDR6, 115W TGP
  • Nvidia GeForce RTX 3070 laptop GPU (+ 245 euros)
    • GA104, 5,120 shaders, 8 GB GDDR6 , 115W TGP
Memory

  • 2 × 8 GB DDR4-3200 (basic)
  • 2 × 16 GB DDR4-3200 (+ 100 euros)
  • 2 × 32 GB DDR4-3200 (+ 280 euros)

All desktop CPUs were configured by XMG to work with 88 watt PPT run in eco mode and produce correspondingly less waste heat to be cooled. In particular, the particularly efficient Ryzen 7 5800X3D should do well in this particular scenario:

In the editorial test, the gaming specialist consumed an average of 58 watts, literally outclassing both the in-house competition and Intel Alder Lake.

Image 1 of 3

figure> XMG Apex 15 Max (E22) (Image: XMG)

The mass storage of the XMG Apex 15 Max (E22) can be between 1 × 500 GB in the base and up to to 3 × 4 TB can be selected via upgrade and also supports PCIe 4.0 x4 on request and for a corresponding surcharge.

WIFI 6, Bluetooth 5.2 and USB-C 3.2 Gen 2

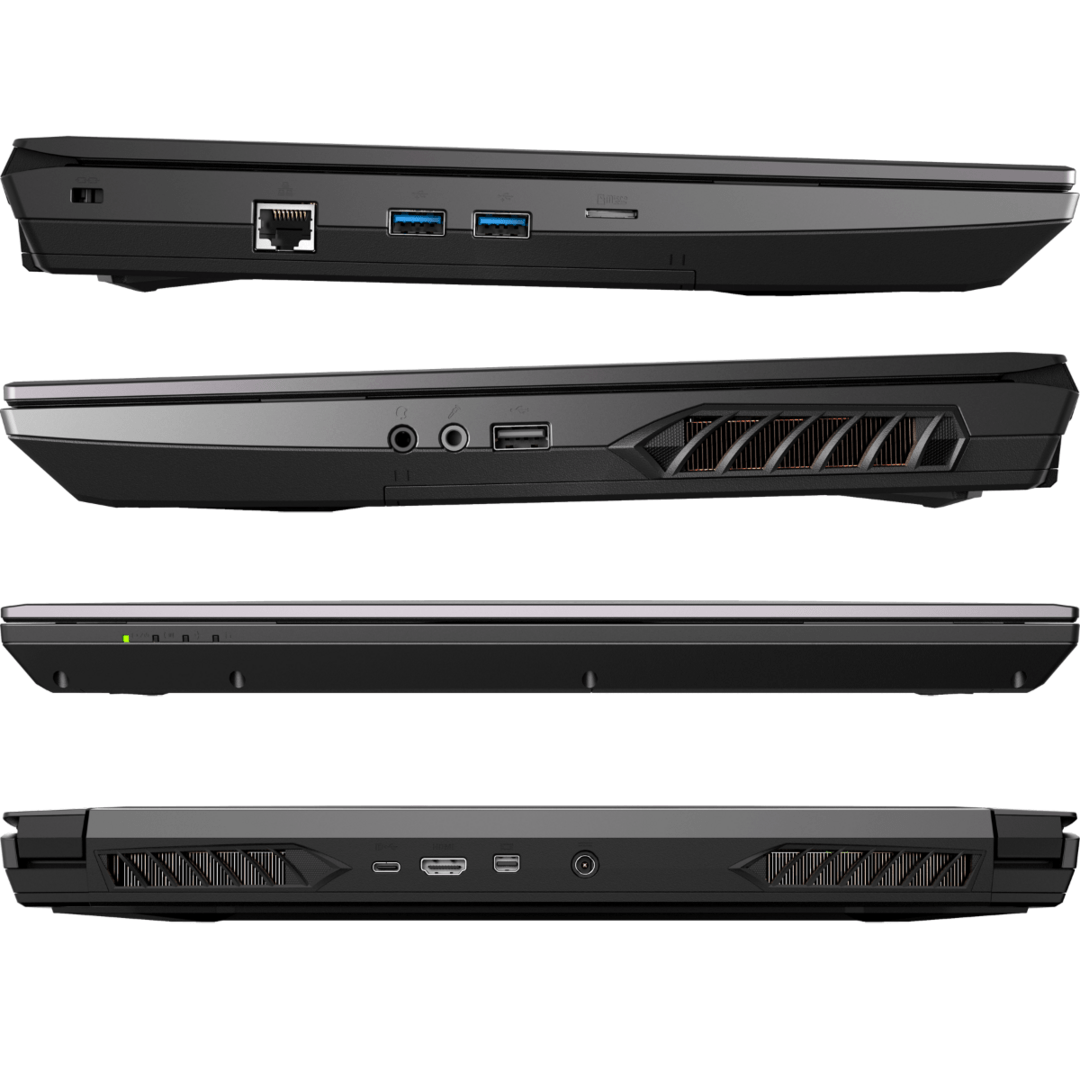

In terms of connectivity, it offers Gaming notebook in addition to WIFI 6 – formerly IEEE 802.11ax – and Bluetooth 5.2, a total of four USB ports including USB-C 3.2 Gen 2 with 10 Gb/s, an HDCP-capable HDMI 2.1 output and a mini DisplayPort 1.4a.

XMG Apex 15 Max (E22) (Image: XMG)< /figure>

The XMG Apex 15 Max (E22) is powered by a 62 Wh lithium polymer battery and, with dimensions of 361 × 258 × 32.5 mm ( W × D × H) a weight of 2.6 kilograms on the scales. The notebook can now be configured and ordered via the manufacturer's website.
