In the test 15 years ago: The best Radeon X1900 XTX came with a Zalman cooler

admin

In the test 15 years ago, seven ATi Radeon X1900 XT (X) (test) from Asus, Club 3D, HIS, Mad-Moxx, PowerColor and Sapphire competed against each other. The majority of the graphics cards were like one egg to the next. The best model stood out from the uniform with a Zalman cooler.

Table of contents

  1. 1 The reference design everywhere, except for Mad-Moxx
  2. test results saw the custom cooler in front
  3. Conclusion

Everywhere the reference design, except for Mad-Moxx

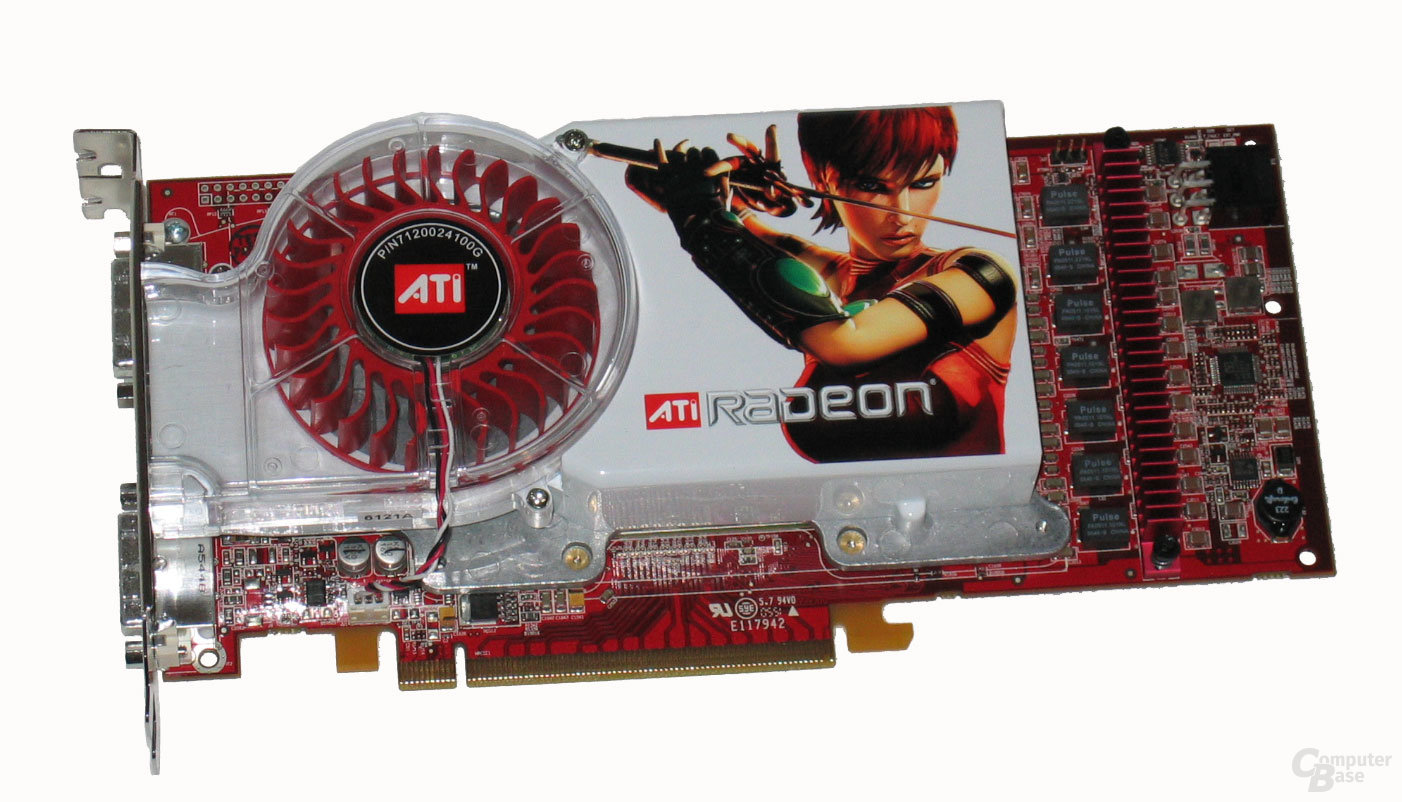

After the presentation of the Radeon X1800 series in October 2005, most manufacturers held back and did not announce any corresponding graphics cards. The availability on the market was poor. This is different with the Radeon X1900 XT (X), after its launch in January 2006, all manufacturers diligently announced models. The companies didn't bother to stand out from the crowd: All seven tested graphics cards were based on ATi's reference board and only the manufacturer Mad-Moxx deviated from the specified dual-slot cooler design.

  1. Powercolor X1900 XTX

Image 1 of 29

Powercolor X1900 XTX
Mad-Moxx Radeon X1900 XTX

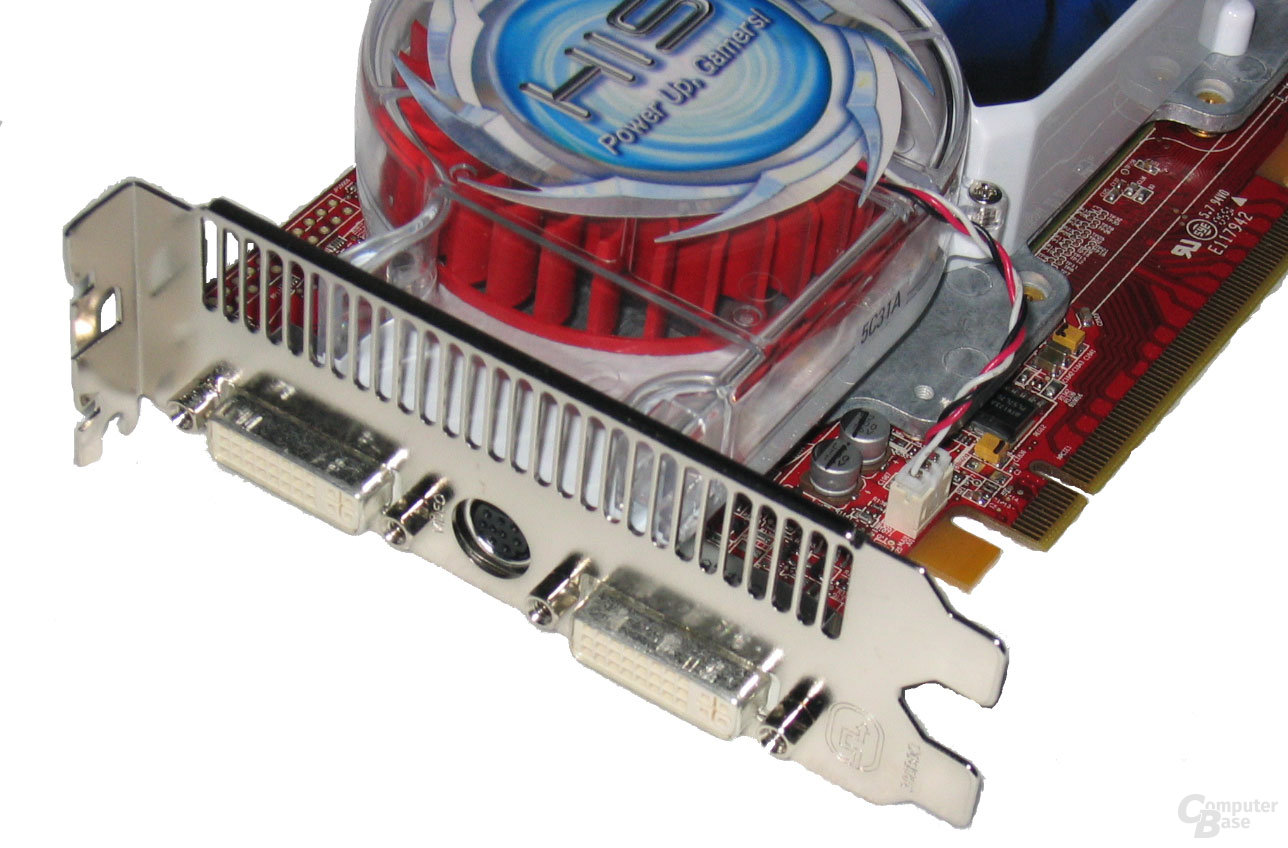

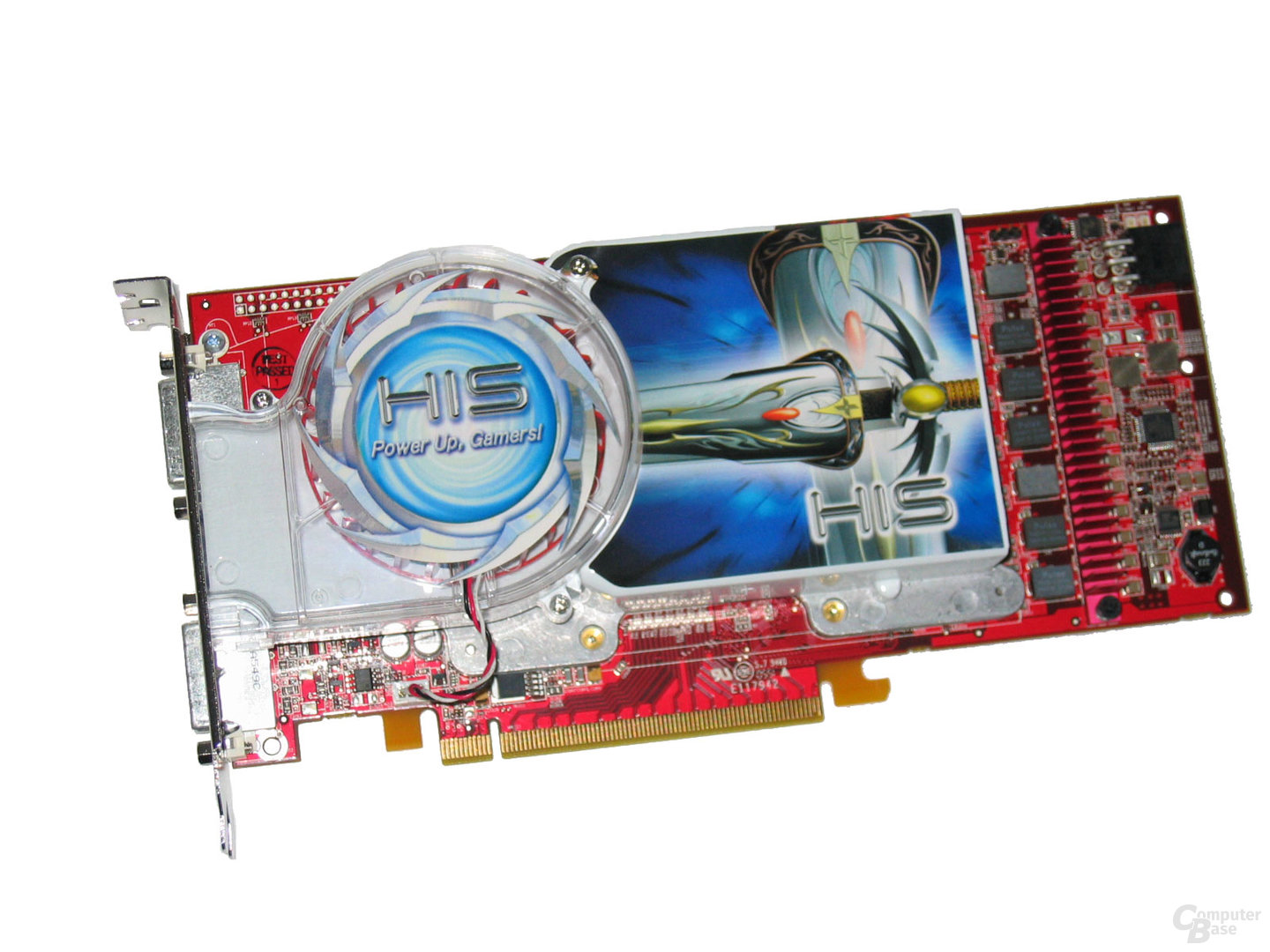

HIS Radeon X1900 XTX
Sapphire X1900 XTX

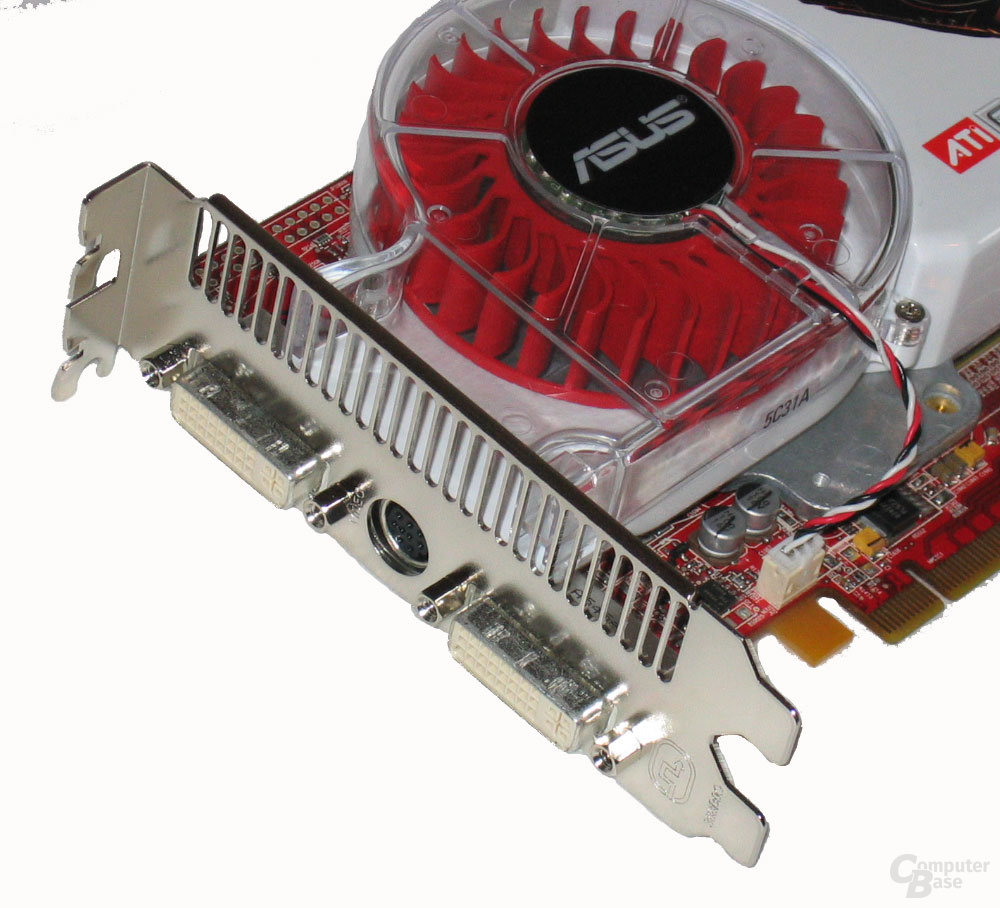

Asus Radeon X1900 XTX
Sapphire X1900 XT
Asus Radeon X1900 XTX
Asus Radeon X1900 XTX
Asus Radeon X1900 XTX
HIS Radeon X1900 XTX
HIS Radeon X1900 XTX
< img src = "/wp-content/uploads/2021/05/c68c864257e59d91f5c6150f2e75227b.jpg" /> HIS Radeon X1900 XTX
Club3D X1900 XTX
Club3D X1900 XTX
Club3D X1900 XTX
Powercolor X1900 XTX
Powercolor X1900 XTX
Sapphire X1900 XTX
Sapphire X1900 XTX
Sapphire X1900 XTX
Sapphire X1900 XT
Sapphire X1900 XT
Sapphire X1900 XT
Mad-Moxx Radeon X1900 XTX
Mad-Moxx Radeon X1900 XTX
Mad-Moxx Radeon X1900 XTX
The technical data was identical for all models. The centerpiece was the ATis R580 GPU, which was operated at 650 MHz. 512 MB GDDR3 graphics memory with 775 MHz were available. All manufacturers rely on memory chips from Samsung. The same agreement prevailed with the connections: With each graphics card, customers could fall back on two DVI-I interfaces and a TV-out port. This left only two points where manufacturers could in principle set themselves apart from the competition: accessories and cooling.

Asus & apos; The model included the games King Kong and Project Snowblind as well as the video editing software PowerDirector 3 DE. Club 3D also relied on bonuses and threw Colin McRae Rally 2005, WWF Panda Junior in Africa as well as PowerDirector and PowerDVD 5 into the ring. At HIS there were Dungeon Siege, PowerDirector 3 SE Plus and PowerDVD 6, while Sapphire relied on PowerDirector 4 DE and PowerDVD 6. Mad-Moxx did without games and software and instead relied on a pre-installed Zalman VF-700 Cu, which should ensure quieter and better cooling of the GPU. There was absolute standard food at PowerColor, because the manufacturer did not include a special cooling solution or special accessories.

Test results saw the custom cooler in front

The differences in the performance of the graphics cards were, as expected, within the scope of the measurement inaccuracy. All Radeon X1900 XTX were about the same speed, the Radeon X1900 XT a few percent slower.

«Previous 1,280 x 1,0241,280 x 1,024 4xAA/16xAF3DMark053DMark06Age of Empire IIIAquamark 3Doom 3Earth 2160F.EARHalf-Life 2 – Lost CoastQuake 4Serious Sam 2The Chronicles of Riddick Next»

  • 1,280 x 1,024 4xAA/16xAF:
    • Mad-Moxx X1900 XTX7.866
    • HIS X1900 XTX7.773
    • Club3D X1900 XTX7.772
    • Asus X1900 XTX7.760
    • Sapphire X1900 XTX7.755
    • PowerColor X1900 XTX7.745
    • Sapphire X1900 XT7.392
  • 1,280 x 1,024 4xAA/16xAF:
    • Mad-Moxx X1900 XTX65,8
    • HIS X1900 XTX64,2
    • Club3D X1900 XTX64,0
    • PowerColor X1900 XTX64,0
    • Asus X1900 XTX63,9
    • Sapphire X1900 XTX63,8
    • Sapphire X1900 XT62,3

    • On the other hand, there were larger differences in the B grades. In terms of volume, the Mad-Moxx X1900 XTX was most convincing thanks to the built-in Zalman VF700 Cu. The other models were about 58 percent louder under load, whereby the Sapphire model was positively out of line. The Radeon X1900 XT from Sapphire, on the other hand, was by far the loudest model, although it formally relied on the same cooler. A similar picture emerged for the temperatures. The GPU on the Mad Moxx graphics card was 16 Kelvin cooler under load than the GPUs on the graphics cards with a reference cooler. The bottom light was again the Sapphire Radeon X1900 XT, which was close to the temperature limit at 91 ° C.

    «Previous VolumeTemperaturePower consumptionOverclocking Next»

    If a current high-end model from ATi was not fast enough, the performance could be further increased by overclocking. In terms of GPU, PowerColor came off best with 682 MHz, while the Asus model achieved the highest memory clock with 873 MHz. The performance increases in the benchmarks were more of a theoretical nature. In addition, the overclocking results of individual graphics cards could not be transferred to all models of a manufacturer, as they depend on the chip quality.

    Conclusion

    Which Radeon X1900 XT (X) came out best in the test difficult to determine. The best cooler was clearly the Mad-Moxx model. At 530 euros, this was also the only model that exceeded the 500 euros mark. Those who wanted to spend less could choose from the remaining models and buy the cheapest graphics card with the best features.
